102066 Battery Disconnect Switch 12V 24V 48V Master Isolator Cut Off Switch
#102066 Battery Disconnect Switch 12V 24V 48V Master Isolator Cut Off Switch
| Item No. | 102066 |
| Product name | Battery Disconnection Switch |

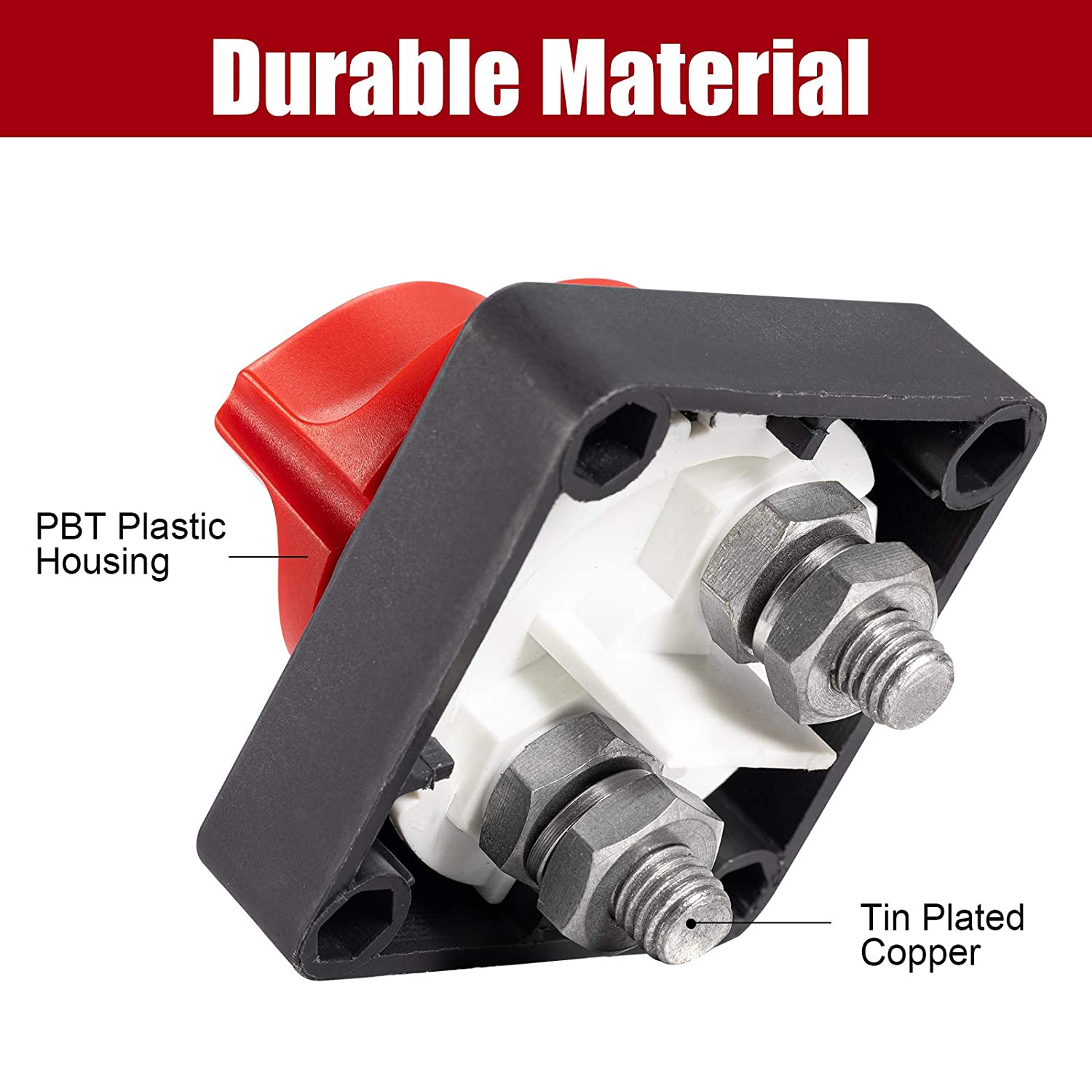

| Material | PBT plastic and copper |
| Size | 2.68”x2.8” |
| Color | Red and black |
| Voltage | 12 V/24 V/48 V |
| Continuous current | 200Amps DC |
Specification：
Voltage: 12V – 48V DC
Continuous Current: 200 Amps DC , Intermittent Current: 455 Amps DC , Starting Current: 1250 Amps DC
Electrical Life: 10000 cycles
Dielectric Strength: 1500VAC / 1min

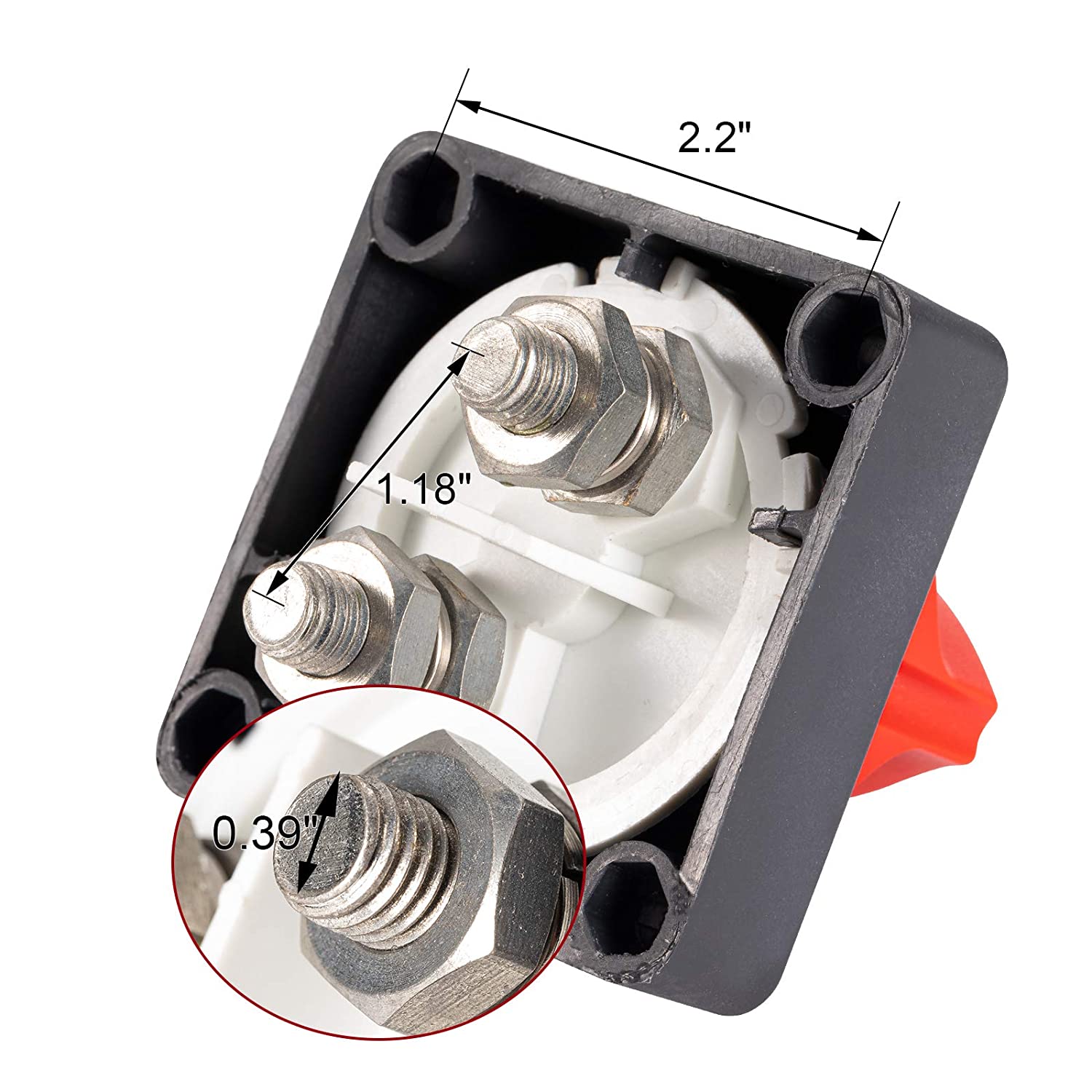

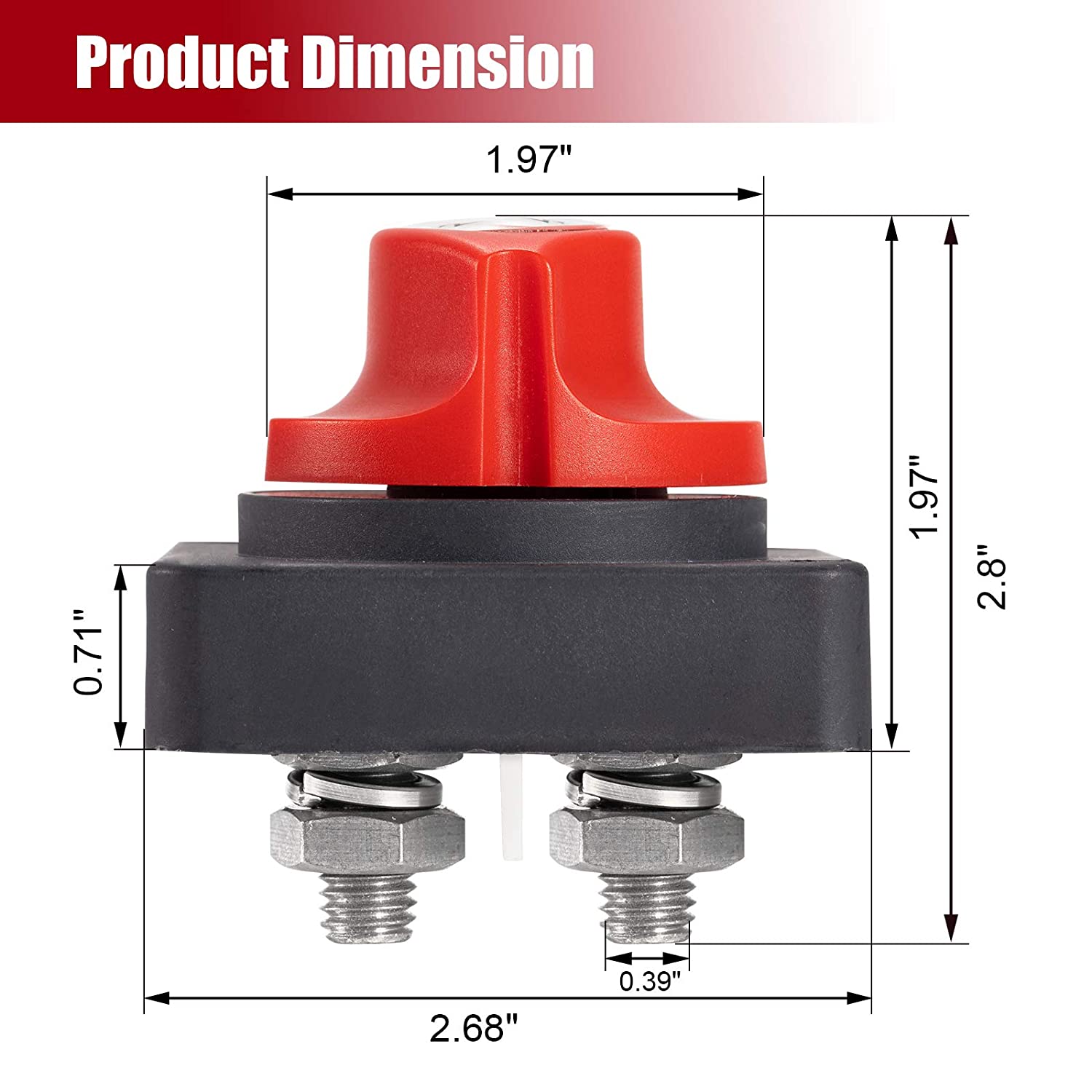

Base Size: 2.68″ x 2.68″ (68mm x 68mm)
Height: 2.80″ (71mm)
Terminal studs: 0.39″ (10mm) diameter

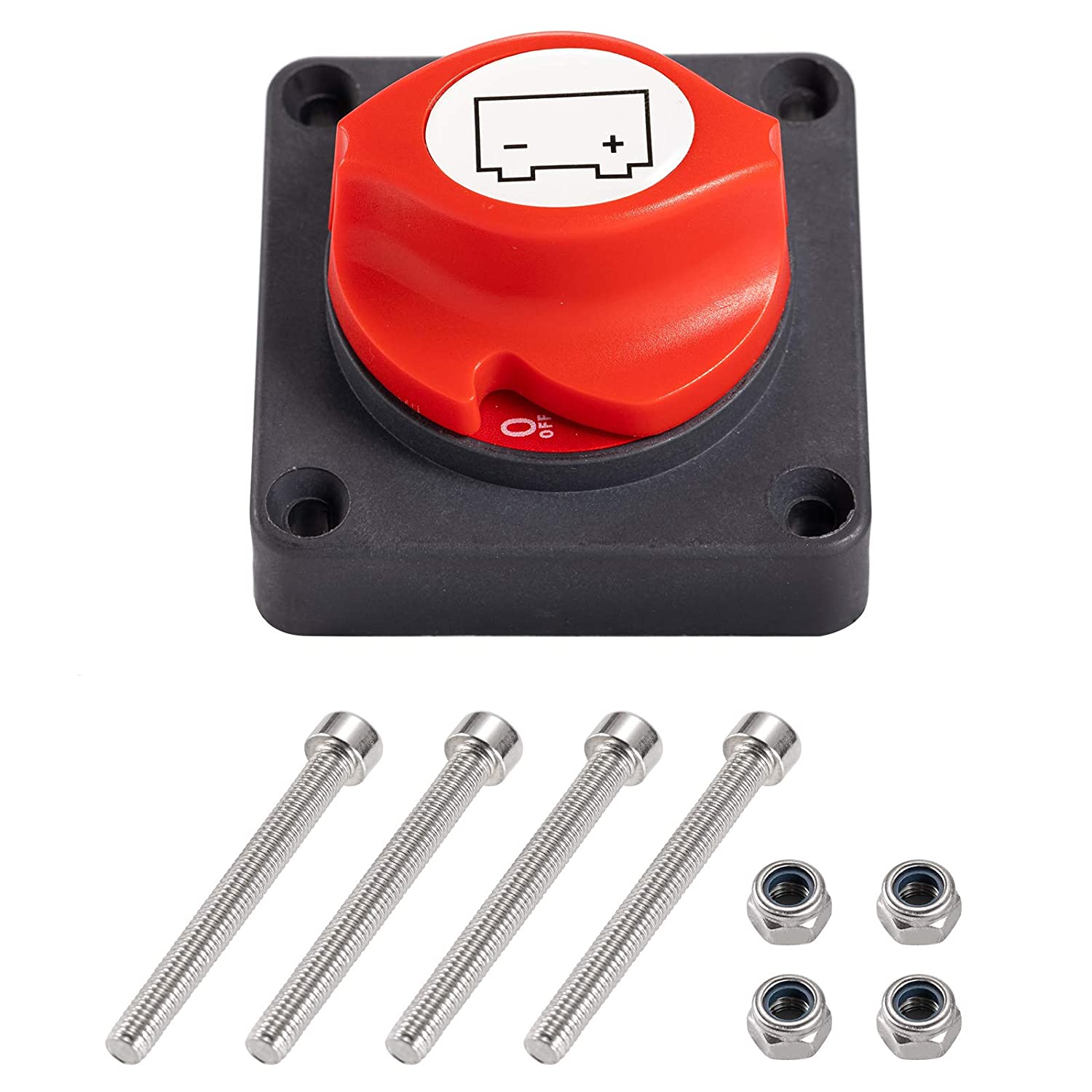

Accessory:4 Stainless Steel Included. Non removable knob. Comes with mounting screws. Tin-plated copper studs and nuts.
Durable&High Quality Easy to Operate Widely Used

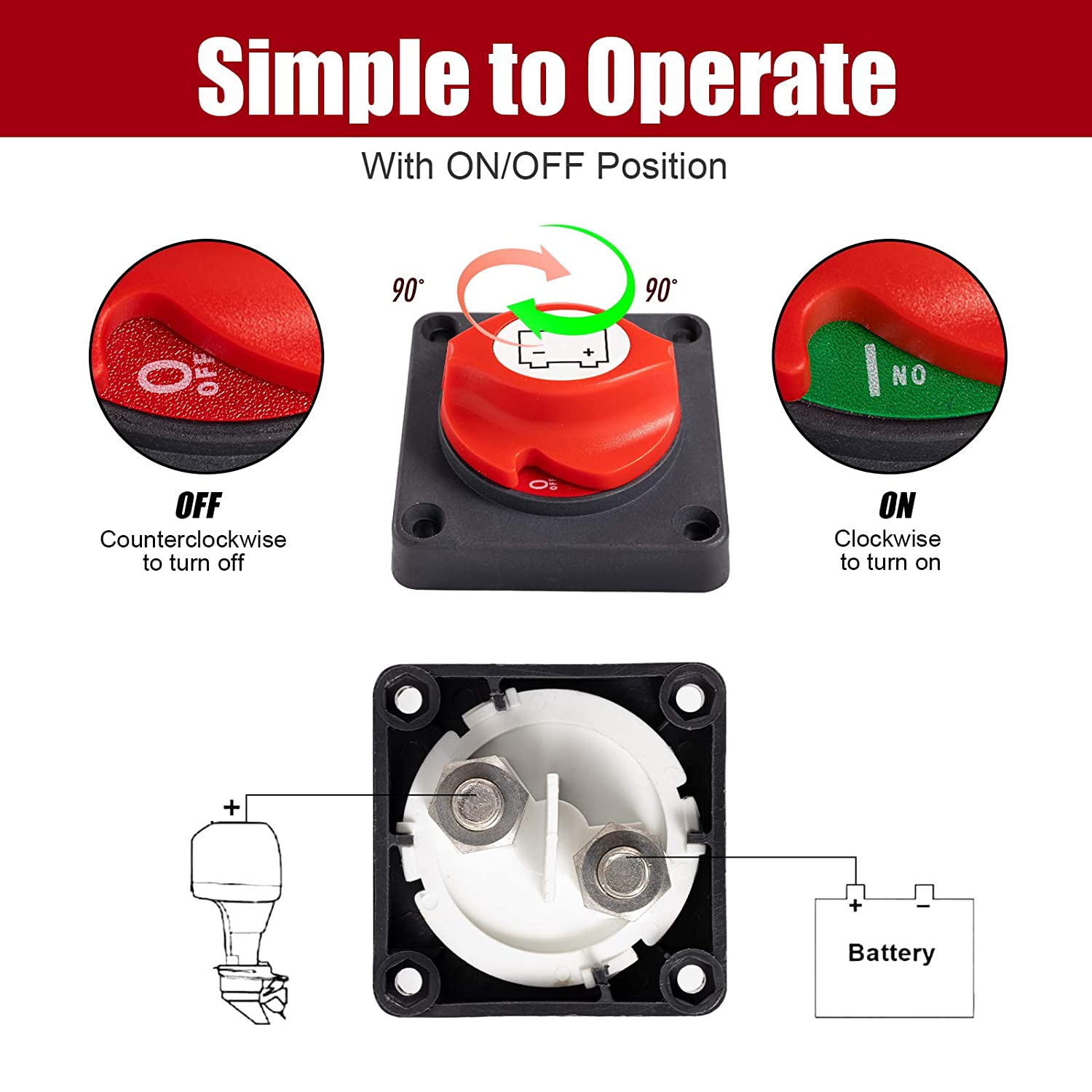

Solid design, small but compact.Offer a Clockwise to turn on , counter clockwise Widely used for Car, Marine, Boat, RV,
simple economic way of isolating battery. to turn off. Camper, Truck, Trailer, ATV, UTV vehicles
engine application.
1.Design and develop fifty new products per year.
2.Stable delivery of 18 or more cabinets every month.
3.8000㎡ factory manned 150 workers,monthly production can be 100000 pieces.
Q1. Are you a manufacturer or a trading company?
A:Yes,we are factory in Ningbo, Zhejiang.
Q2. This is my first purchase, can I get sample before order?
A: Yes, sample can be shipped to customer with free.
Q3. Can you provide OEM service?
A:Yes, OEM service can be provided.We can do according to customers’ demands.
Q4. What is your terms of payment?
A:T/T and Paypal.
Q5. How about your delivery time?
A:Generally,it will take 45 days after receiving your advance payment.The specific delivery time depends on the items and quantity of your order.
Q6. How do you guarantee the product quality?
A:Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Q7. What kind of warranty you provide?
A:1 year since the delivery date !Quality problems found within warranty period,Replacement goods will be free supplied in your next order.
