Item Description:

•SKU#:102067 1-2-Both-Off Battery Disconnect Switch 12V 24V 48V Master Isolator Cut Off Switch

•Size: 2.68” x 2.91”

•Durable PBT plastic housing, copper tin plating inner stud

•12V – 48V DC systems

•Four position rotating switch provides Battery 1, both on, battery 2, both off alternatives

•Help to shut down the power of battery easily and safely

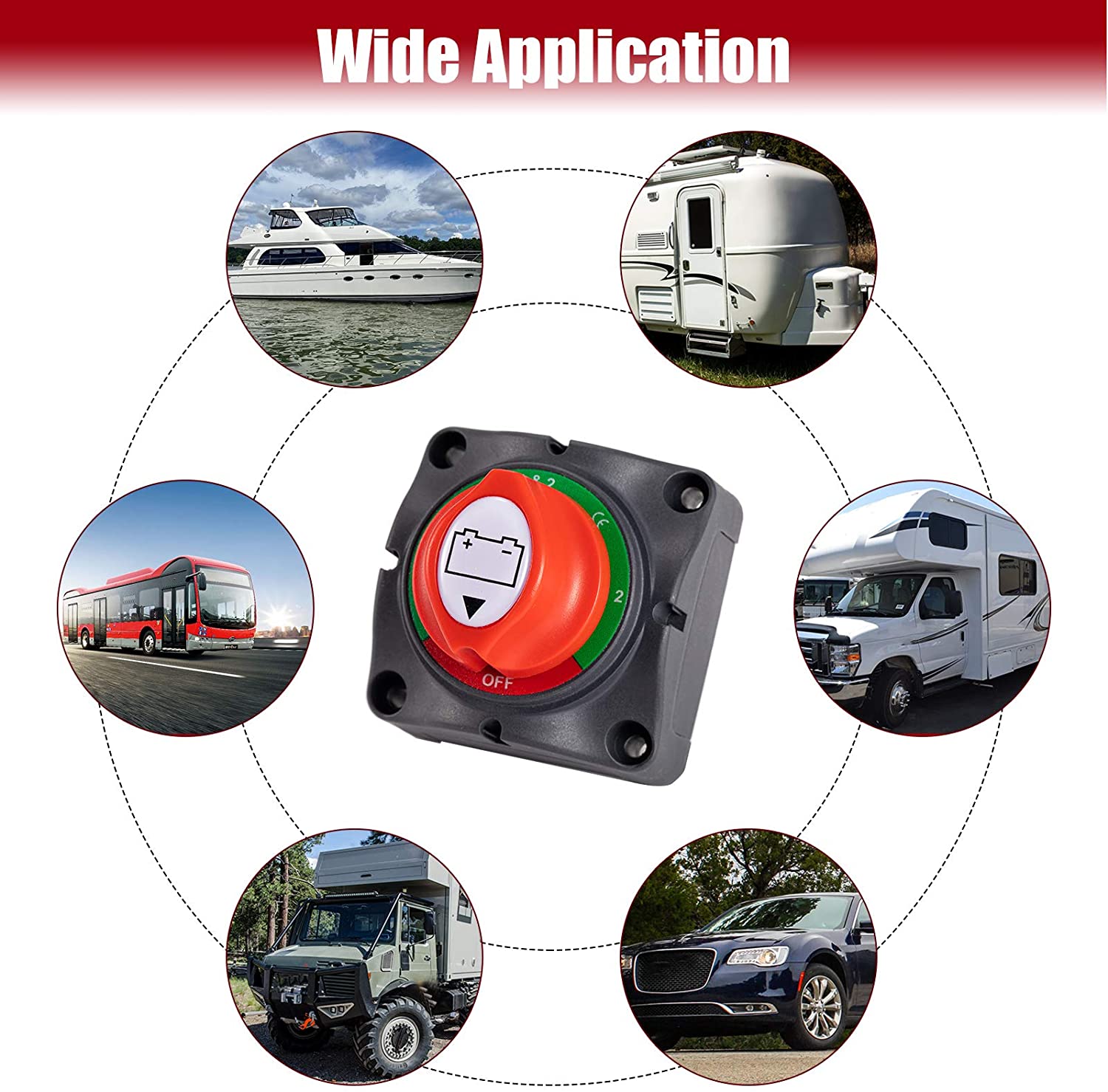

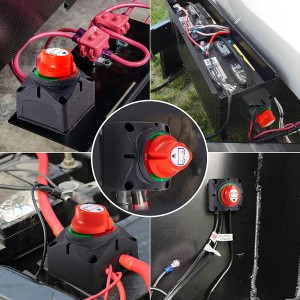

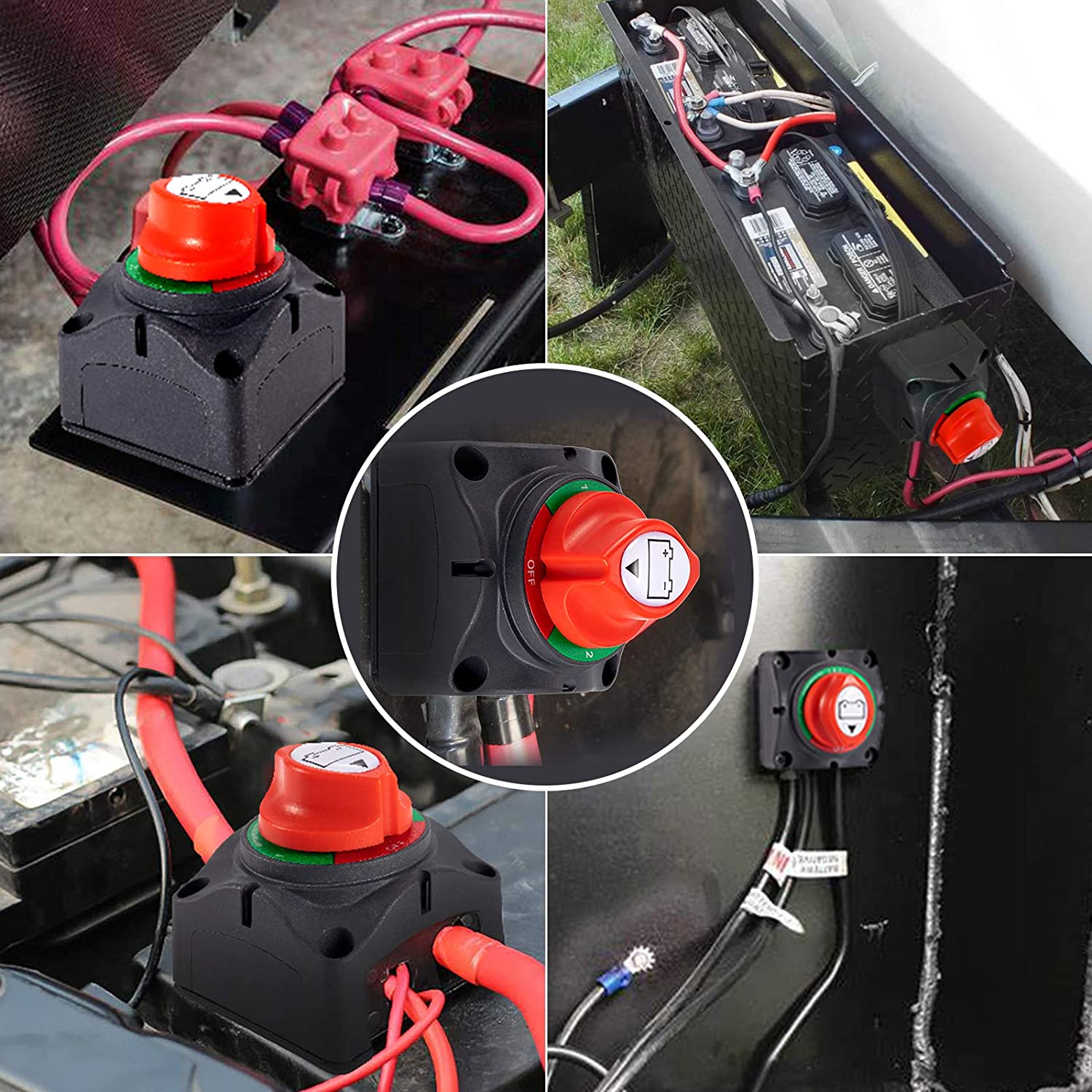

•Widely used for marine, boat, RV, camper, travel trailer, truck, ATV, UTV, car vehicles, battery banks and other devices




  • Ship Port: Ningbo,China
  • Min.Order Qty: 1000 PCS/KITS
  • Normal Delivery Time: 45Days
  • Ceritificate: ISO9001 ,DOT FMVS108
    • Download as PDF

    Product Detail

    Product Tags

    Product Details

    #102067 1-2-Both-Off Battery Disconnect Switch 12V 24V 48V Master Isolator Cut Off Switch

    Battery Disconnection Switch

    Item No. 102067
    Product name                  Battery Disconnection Switch
    Material PBT plastic housing, copper tin plating inner stud

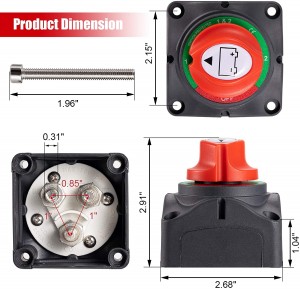

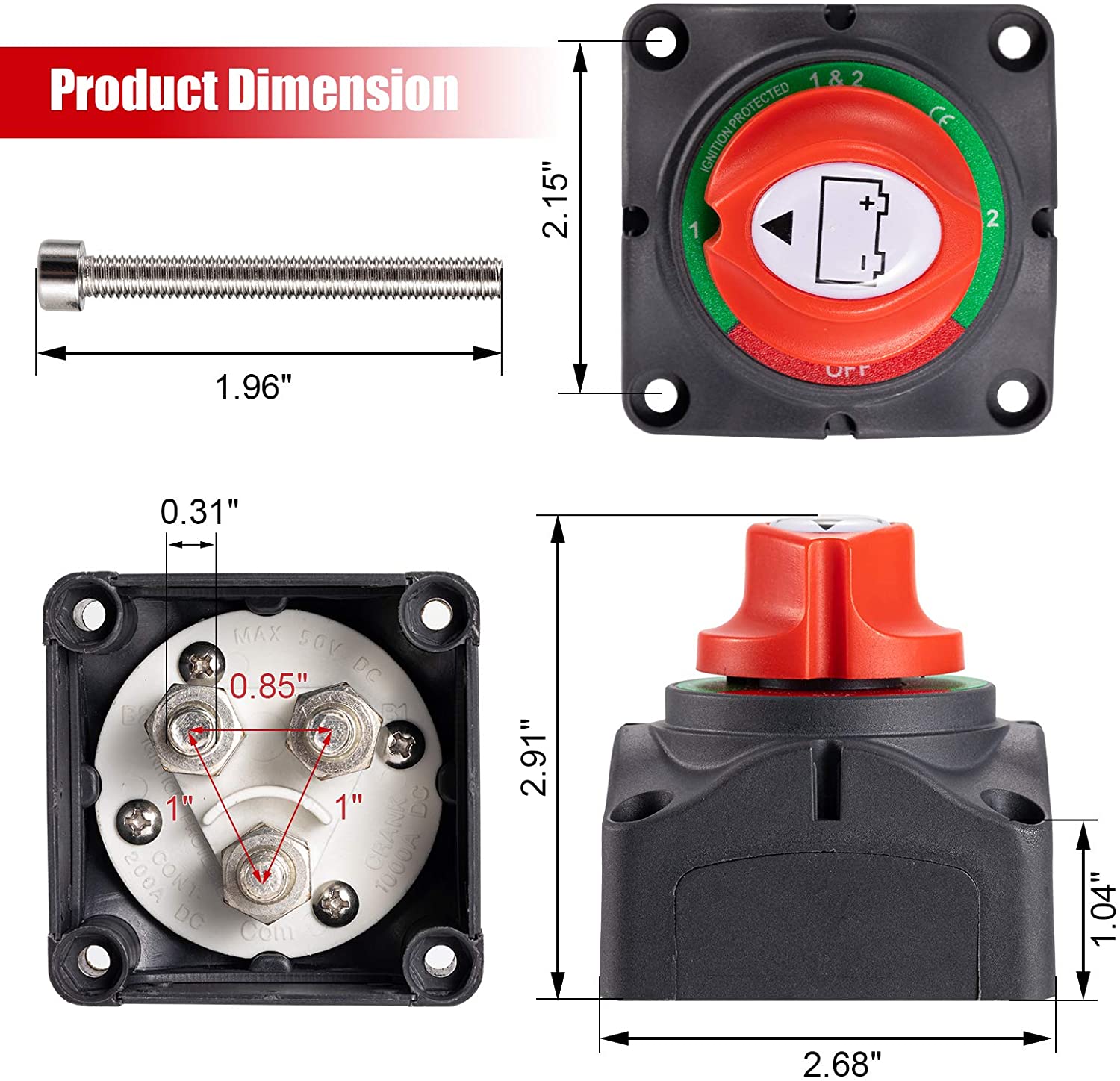

    Size 2.68”x 2.91”
    Stud size 3×5/16″ (8mm)
    Voltage 12V-48V

    1

    The battery kill switch can disconnect the battery safely. It will eliminate any power draining from the battery when vehicle or boat is not in use.

    Continuous Current：250Amps DC

    Intermittent Current：455Amps DC

    Momentary Current：1250Amps DC

    Dielectric Strength：1500VAC/1min



    5                                                                                  3

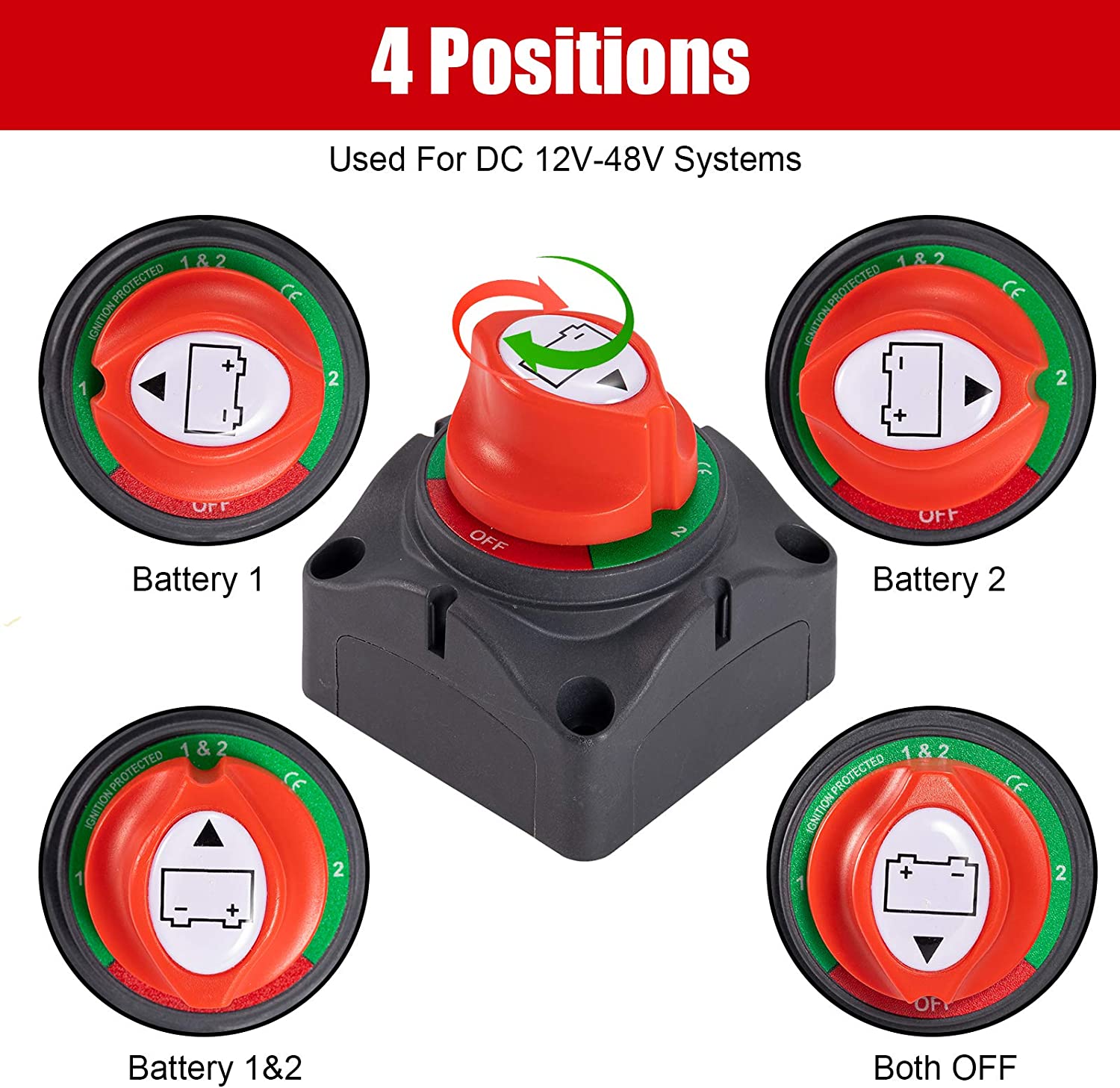

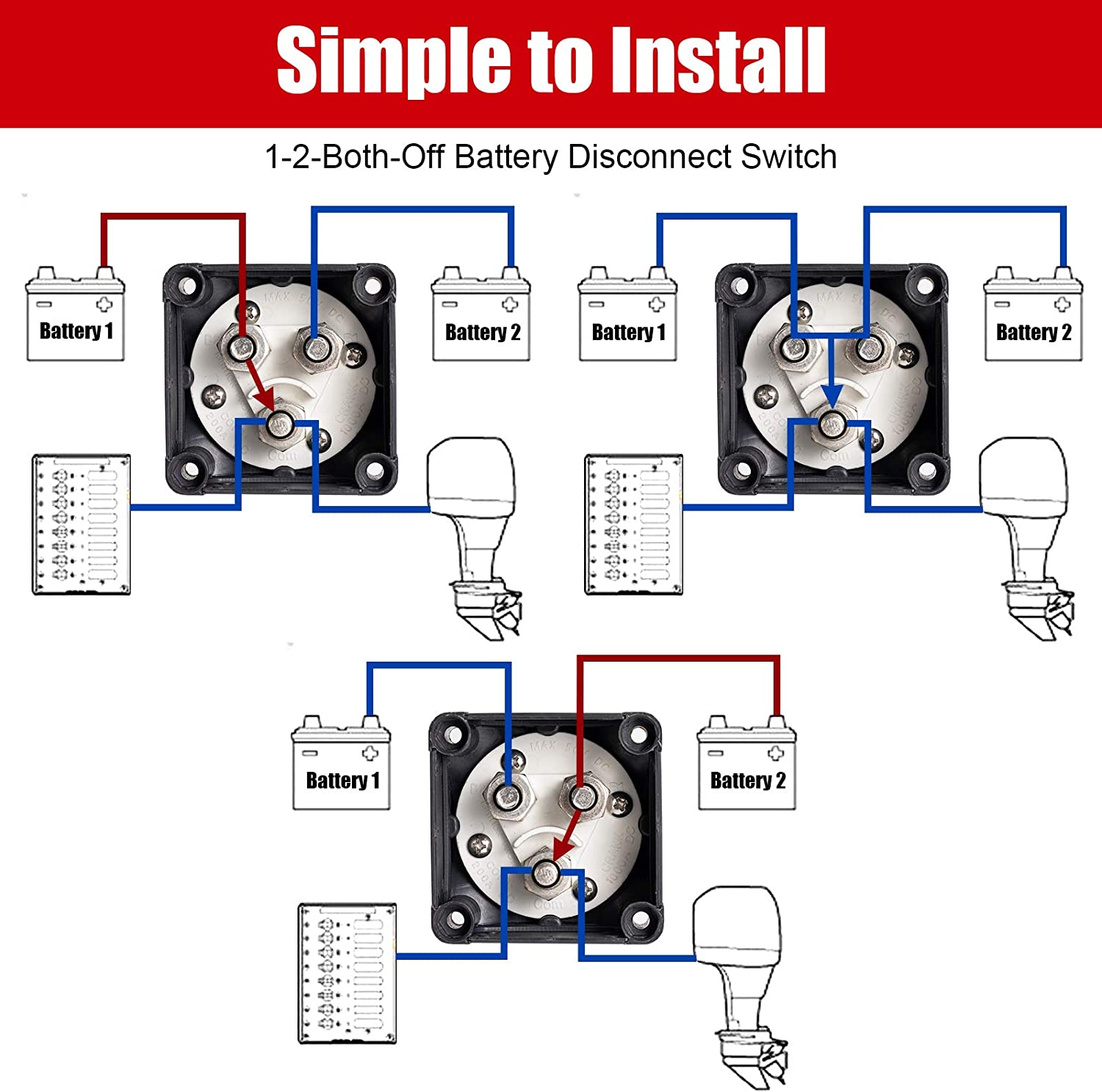

    Four Position Rotating Switch                                                                                              Durable&High Quality

    Design for 2 batteries, can switch to battery 1, battery 2                                                     Durable PBT plastic housing, copper tin plating  inner stud.

    separately, both on and off together. Used for DC 12-48V                                                  Stud Size:3×0.31″ (8mm). Ideal for marine/vehicles applications.

    systems to isolate and secure the electrical system.



    9                                                                                       8 battery switch

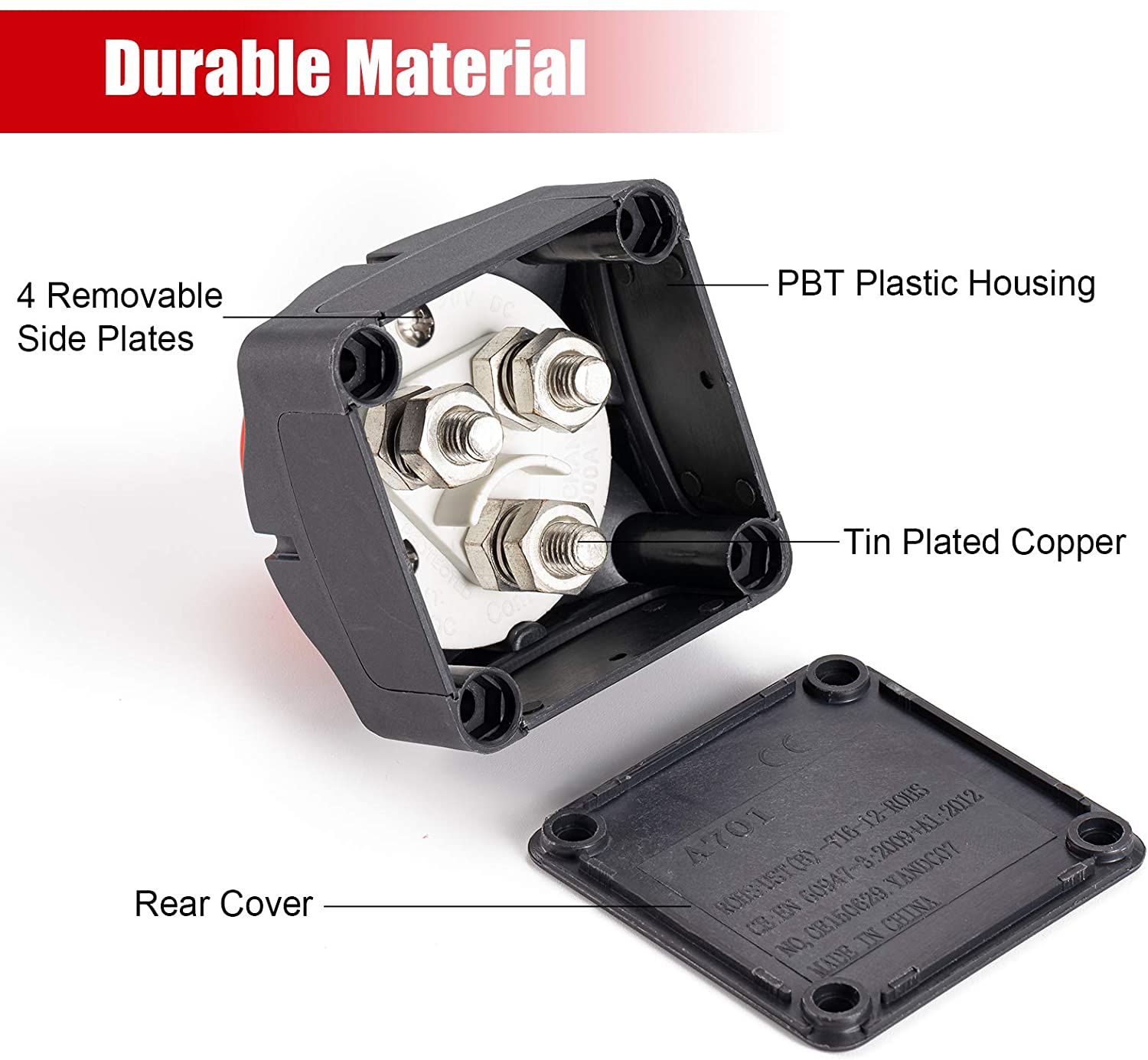

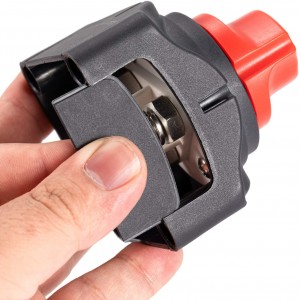

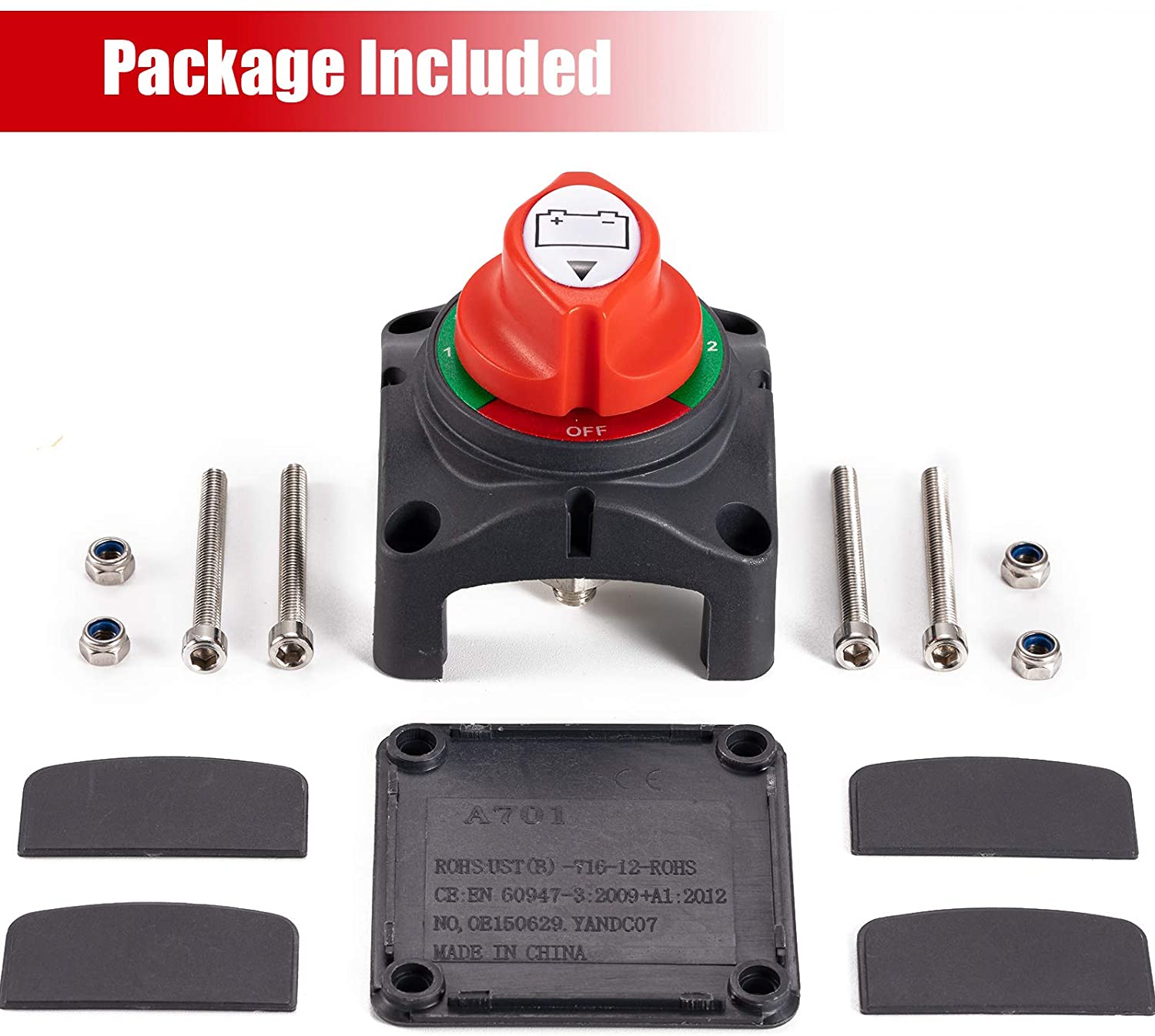

    Removable Plates for Easy Use                                                                   Package Included

    4 removable side plates provided access for battery cables.                                                  1 x Battery Switch

    Rear cover insulates terminals against any short of circuits.                                                   4 x Removable Side Plate

                                                                                                                                                     1 x Rear Cover

                                                                                                                                                     4 x Screw

                                                                                                                                                     4 x Nut

    Our Factory

    1.Design and develop fifty new products per year.

    2.Focus on North American markets for 15 years, 99.9% good reviews.

    3.8000㎡ factory manned 150 workers,monthly production can be 100000 pieces.

    factory6
