#102070 Side Post Battery Disconnect Switch Solid Brass Knife Blade Master Switch

Battery Disconnection Switch

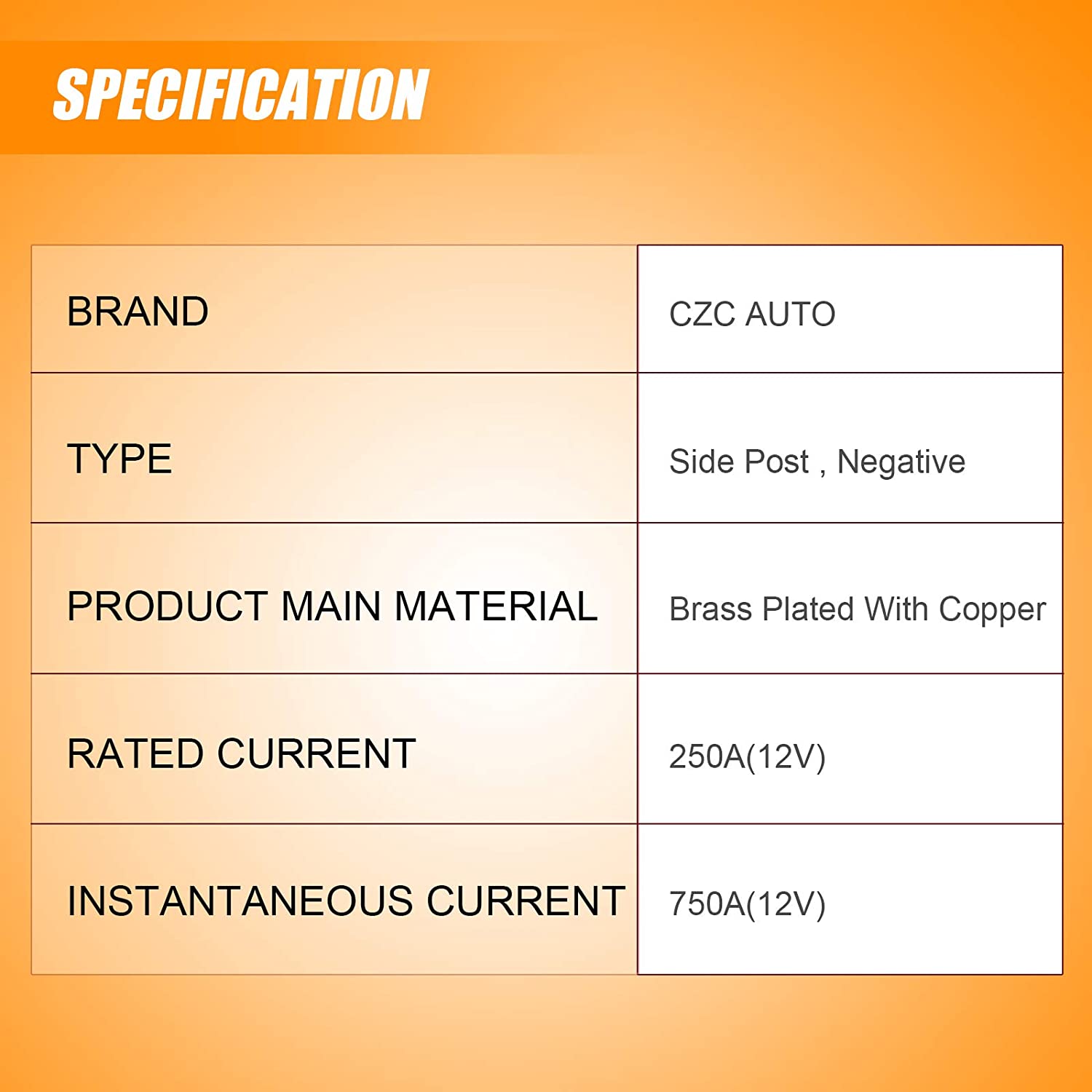

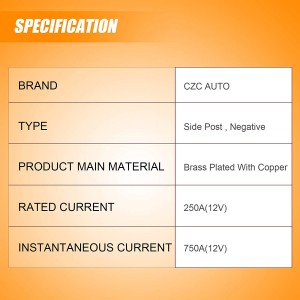

Feature:

Type: side post, negative

Rated Current: 250A (12V), Instantaneous Current: 750A (12V)

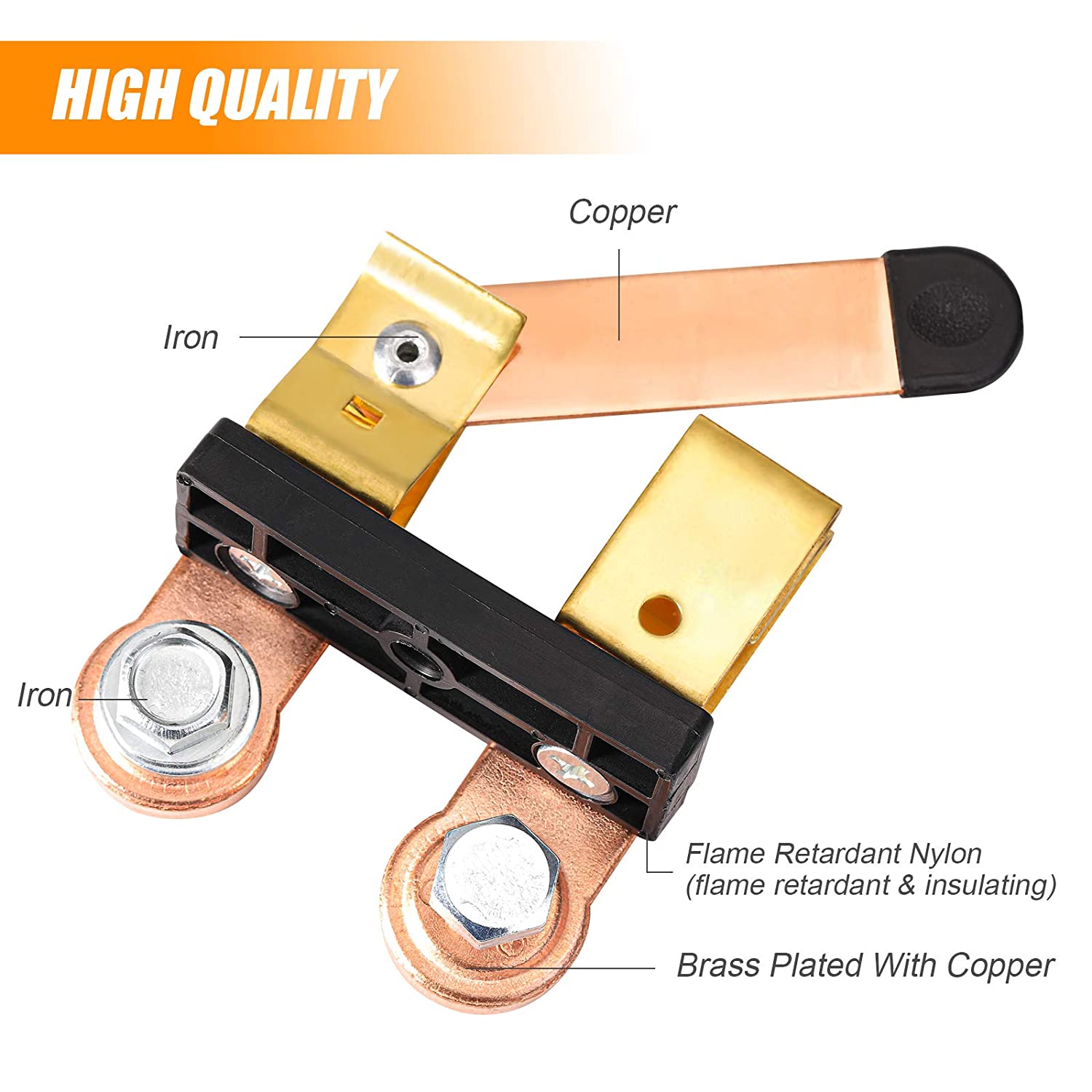

Main Material: brass plated with copper,rust and corrosion resistant, for safety use

Bright metallic color for easy daily check

Long bolts for convenience

Installation:

1.Firstly, disconnect the cable connection on the battery with the negative side first. Make sure the negative cable is always disconnected, then the positive cable.

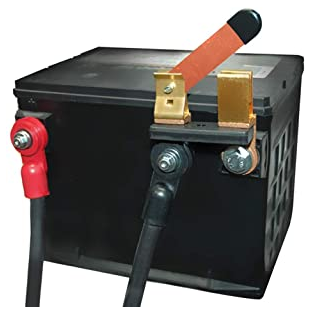

2.Install the battery knife disconnect switch on the negative battery terminal. (For safety, with the lever raised or disconnected.)

3.Reconnect the battery cable on the positive side, then connect the negative battery cable to the opposite end of the battery disconnect switch.

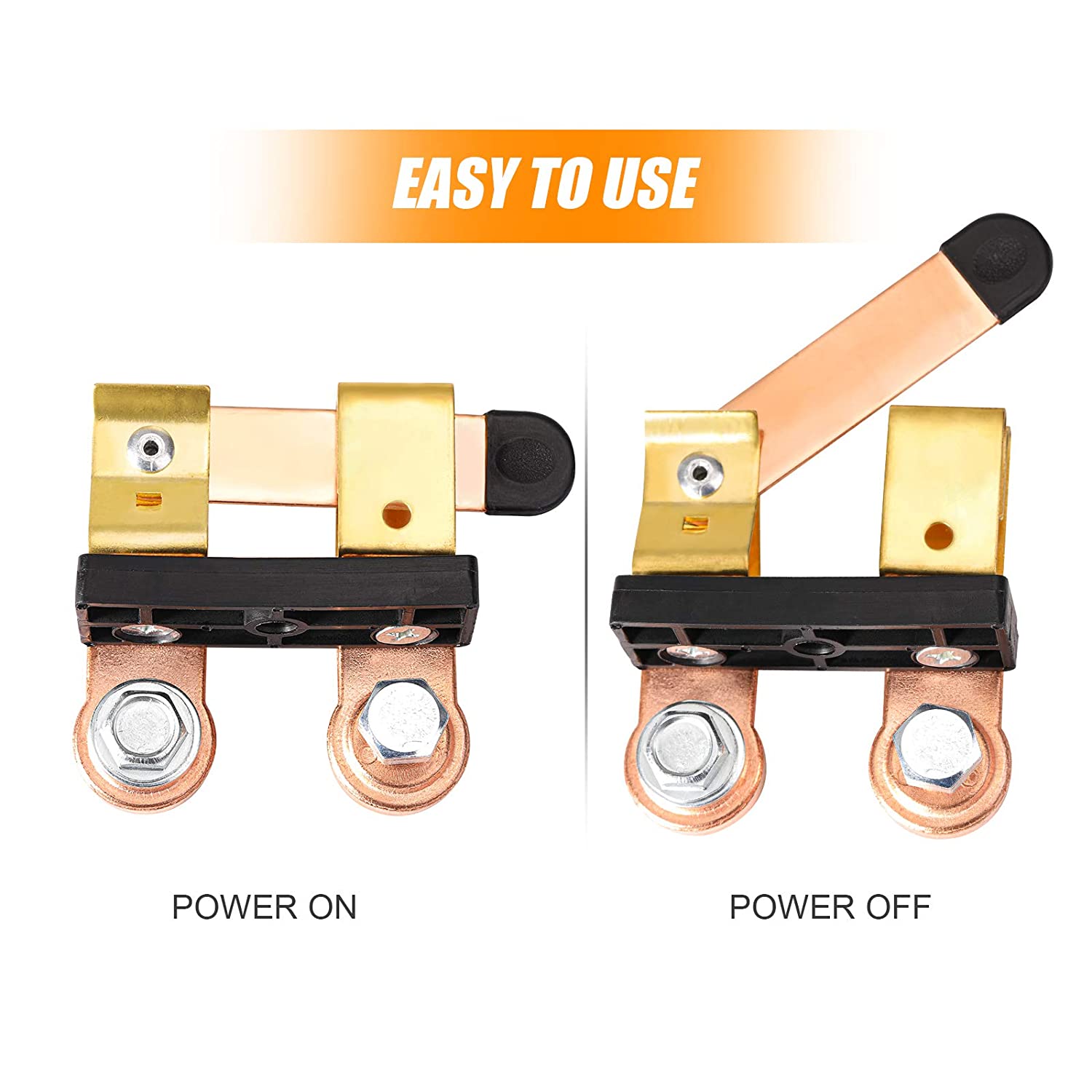

(For safety, with the lever raised or disconnected.) Test the connection by checking if there is power when the lever is closed.

Wide Application:

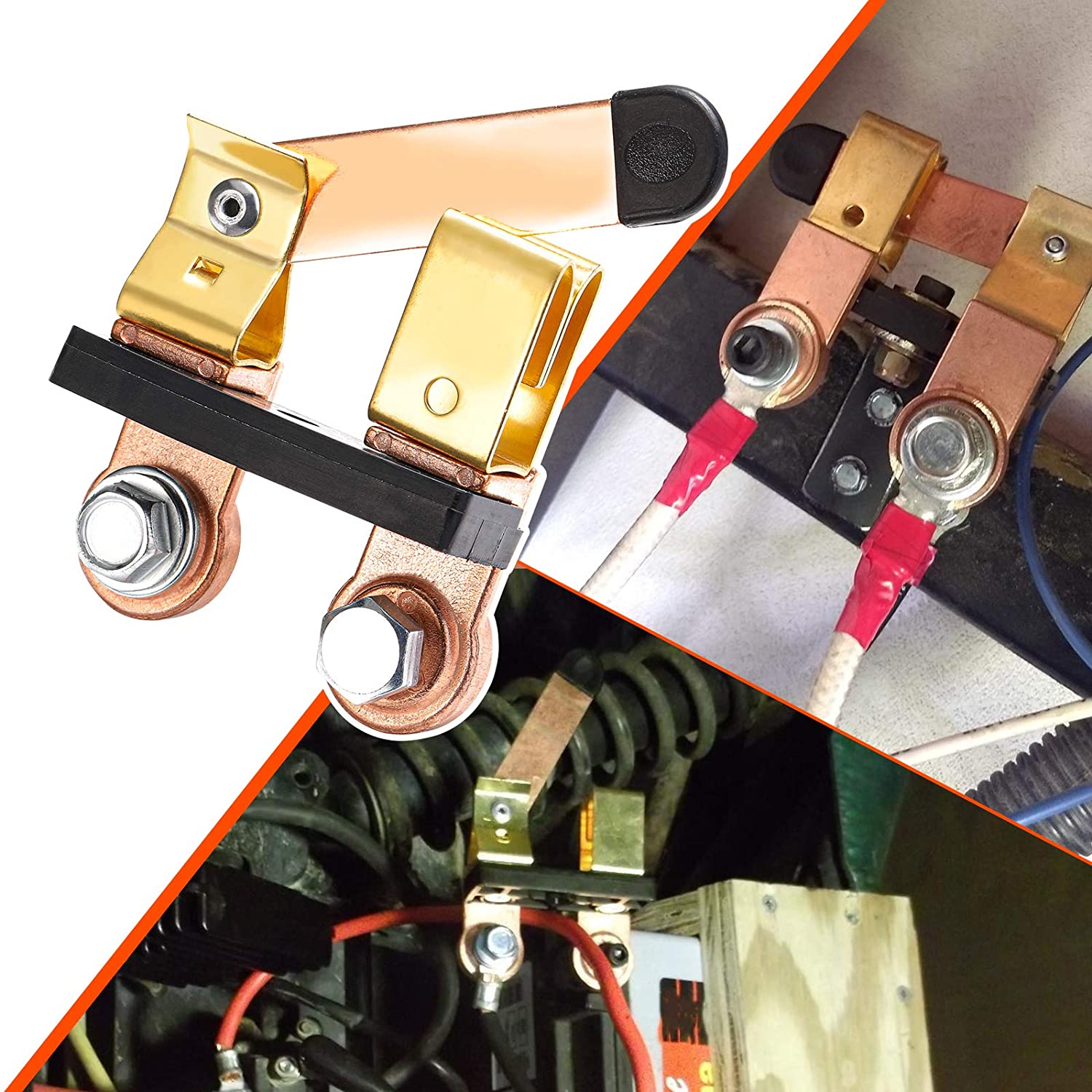

Apply to the battery has side post terminal with 3/8’’ hole. Also used for electrical equipment.

DC 12V-24V system, 250A continuous and 750A momentary at DC 12V. This blade switch is suitable for car, boat, truck, vehicle, RV, ATV and etc.

Note:

1. Never connect the battery disconnect switches to the positive terminal of your battery.

2. Ensure the key is removed from the ignition and all lights and accessories are turned off.

3. Wear safety equipment and remove any items or accessories that may contact the battery or switch.
