101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch

101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch Featured Image
  • 101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch
  • 101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch
  • 101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch
  • 101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch
  • 101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch
  • 101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch

Item Description:

SKU#:101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch

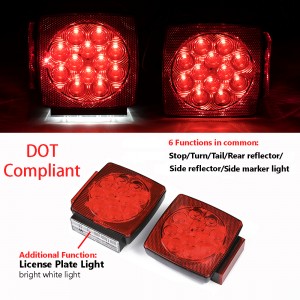

•Left and right LED trailer tail Lights have 7 functions: stop/turn/tail/rear reflector/side reflector/side marker light/ license plate light.

•18 gauge 100% pure copper wire harness ensure trailer lights LED do good job underwater.

•Sonic welding sealing technology ensures sealing solidity of the LED tail lights.

•Easy to install the submersible trailer lights.


  • Ship Port: Ningbo,China
  • Min.Order Qty: 1000 PCS/KITS
  • Normal Delivery Time: 45Days
  • Ceritificate: ISO9001 ,DOT FMVS108
    • Download as PDF

    Product Detail

    Product Tags

    Product Details

    #101001 12V Submersible LED Trailer Tail Light Kit for Under 80 Inch Trailer Boat Utility Trailer Waterproof

    Led Trailer Tail Light Kit

    Item No.                            101001 Type                                          Led Trailer Tail Light Kit
    Size 4-5” x 5” x 1.5”                       Certification DOT SAE FMVSS 108 APPROVED
    Material PMMA lens,ABS housing                           Function  Stop/Turn/Tail/Rear reflector/side reflector/side marker light/  license plate light

    Voltage

    		 12 V  Wiring length  25ft
    Waterproof  IP68  Package  1 kit/clamshell,12 kits/ctn

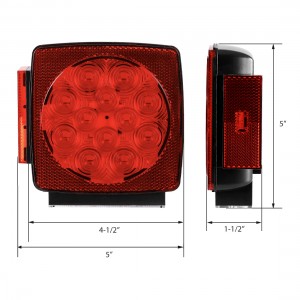

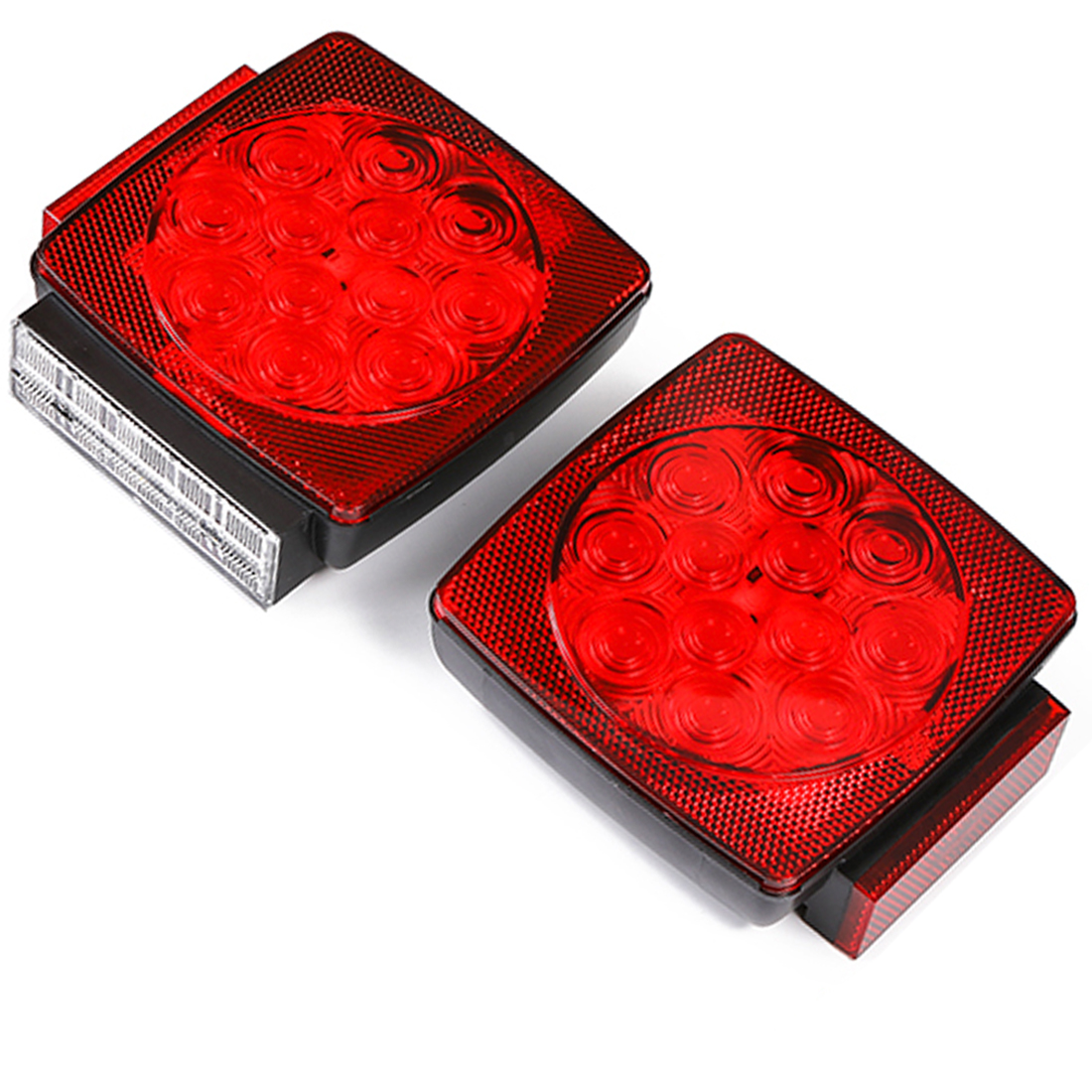

    101001W-5                          12V Submersible Boat Led Trailer Tail Light Kit Truck Waterproof Trailer Lights for Trailer (4)            06

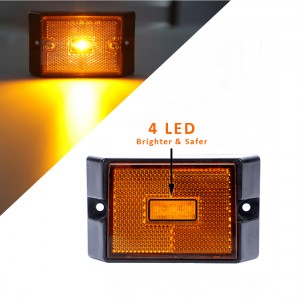

      All LED Tail Light                                                      4 LED Side Marker Lights                                        Size

      Right Tail Light has 16 LEDS :12 rear facing                  Each light has 4 LED,2 more than normal                         Len cover: 4.5″x 4.5″

      large LEDs and 4 SMD LED-on Side Marker.                 similar lights. Brighter and Safer.                                       Height: 5″

      Left Tail Light has 19 LEDs : 12 rear facing                     Waterproof  rate is IP 68.                                                  Width:1.5″

      large LEDs , 4 SMD LED-on Side Marker

      and 3 white LEDs facing down(For license

      plate illumination)

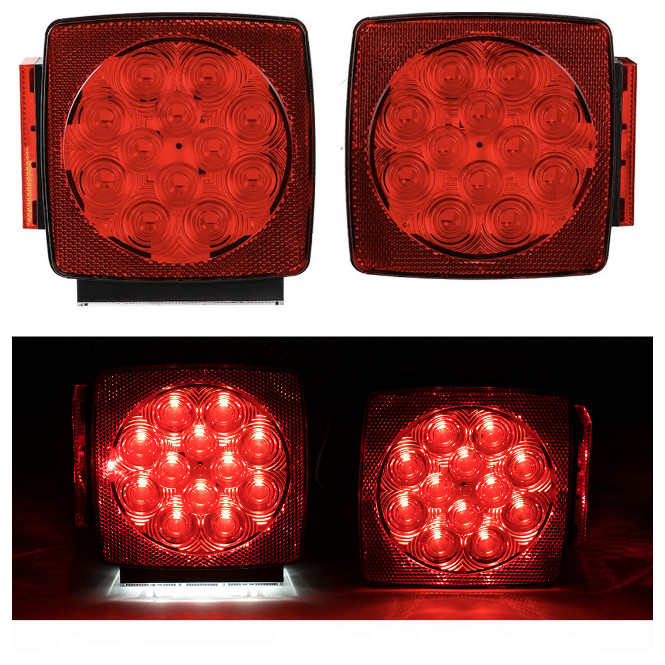

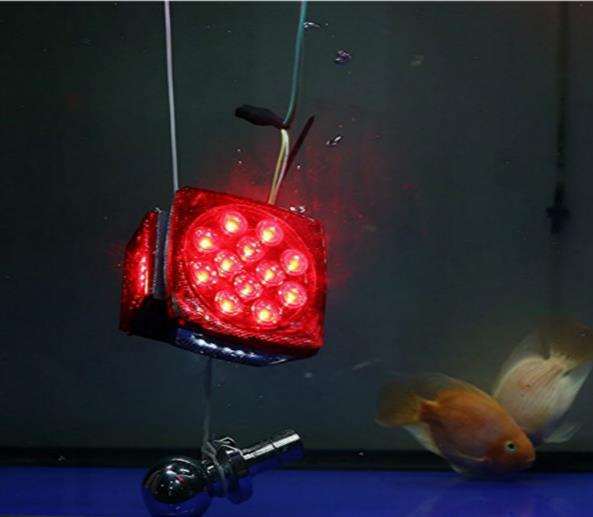

    101001W_meitu_1                        7                    2_meitu_4_迷你看图王

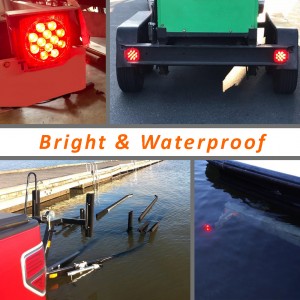

        DOT Compliant                                                           Application                                                                  Submersible and Waterproof

        100% comply with DOT standards.                                   Fit for under 80ft width boats, RVs, jet ski                       Sonic welding, and every possible gap is

        100% quality inspection before shipping.                          and utility trailer.                                                               sealed with glue, for better waterproof.

        Eg. photometric

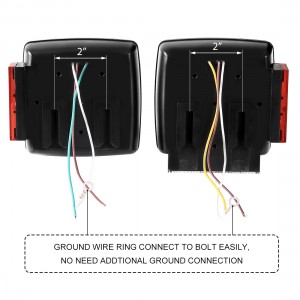

    4-1                                                                     61hrbtaJCxL._AC_SL1100_

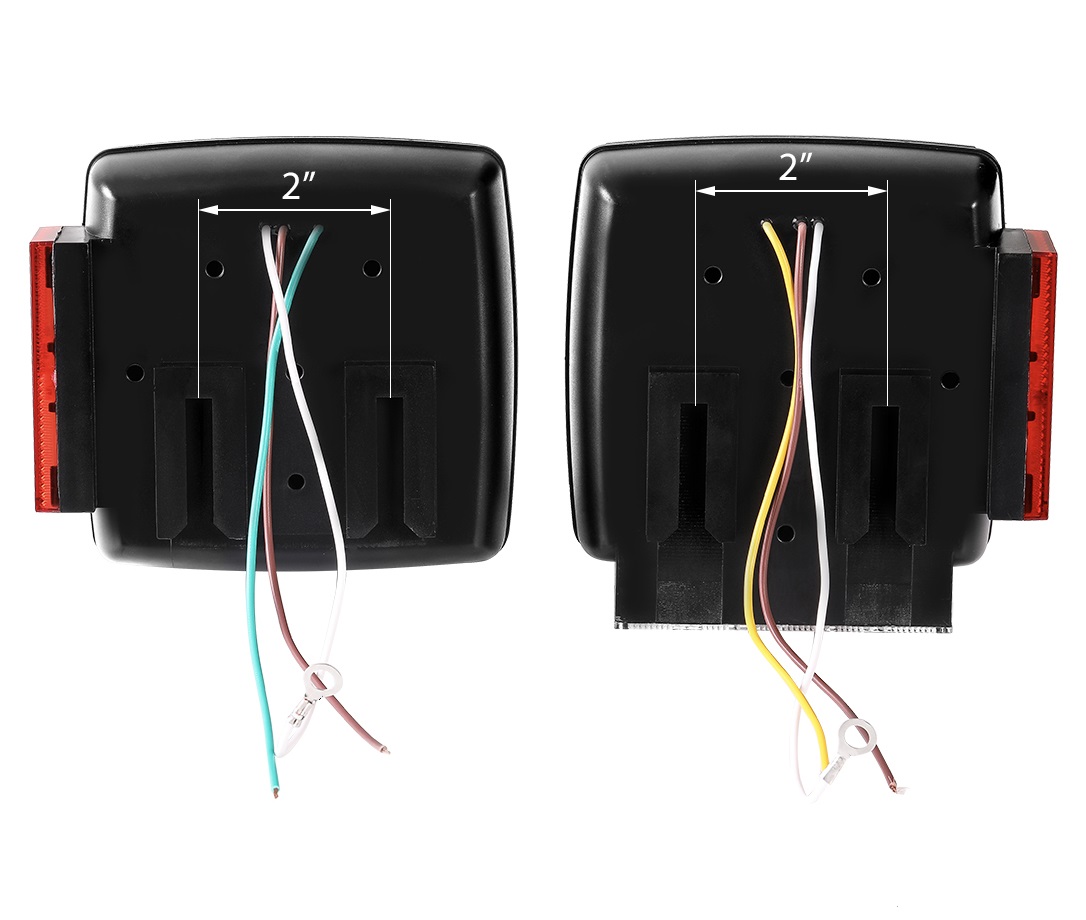

      Installation                                                                                                                Wiring harness

      Connect the BROWN wire of the Trunk Harness(4)to                                                 18 Gauge 100% pure copper wire harness ensure

      the towing vehicle’s Running Lights wire.                                                                     trailer lights led work well underwater.

      Connect the YELLOW wire of the Trunk Harness to

      the vehicle’s Left Stop & Turn light.

      Connect the GREEN wire to the towing vehicle’s Right

      Stop & Turn light.

      Attach the WHITE GROUND wire to the towing vehicle’s

      frame.

    Our Factory

      1.15 years’ design and manufacturing experience.

      2.One of the fastest growing trailer light and lock factories in China, increasing 30% annually.

      3.Focus on North American markets for 15 years, 99.9% good reviews.

    factory6

    Customer Reviews

    customer customer

    FAQ

      Q1. Are you a manufacturer or a trading company?

      A:We are a leading factory located in Ningbo,Zhejiang.



      Q2. This is my first purchase, can I get sample before order?

      A: Yes, sample can be shipped to customer with free.



      Q3. Can you provide OEM service?

      A.Yes,we provide OEM service and have rich experience and skills.



      Q4. What is your terms of payment?

      A:T/T and Paypal are acceptable.



      Q5. How about your delivery time?

      A:Generally,it will take 45 days after receiving your advance payment.The specific delivery time depends on the items and quantity of your order.



      Q6. How do you guarantee the product quality?

      A:Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



      Q7. What kind of warranty you provide?

      A:We provide 1 year since the delivery date.
